Indoor Only

Description

Suitable for metal material packaging. Protection against corrosion of ferrous and non-ferrous metal in storage and shipment processes.

Application

This product is recommended for:

  • The durability of the metal protection offered, the functioning of the VCI Paper is efficient for a period of 36 months or more.
  • This material serves as “barriers” that impede the penetration of humidity and contact with impurities, creating a directed volatilization. They can conform the desired mechanical resistance unto the VCI paper.
Corrosion VCI

Properties

  • For VCI paper, active VCI compound applied at 8-9% on Kraft Paper.
  • For plastic paper, active VCI compound applied at 8-9% on Kraft Paper and 20μm PE film.

Features & Benefits

  • Toxic levels are tested and passed: LD50 orally > 2000 mg/kg.
  • Material is completely free of nitrites, nitrates, chromates, sulphates and heavy metals.
  • Practically non-toxic product, totally biodegradable and recyclable.

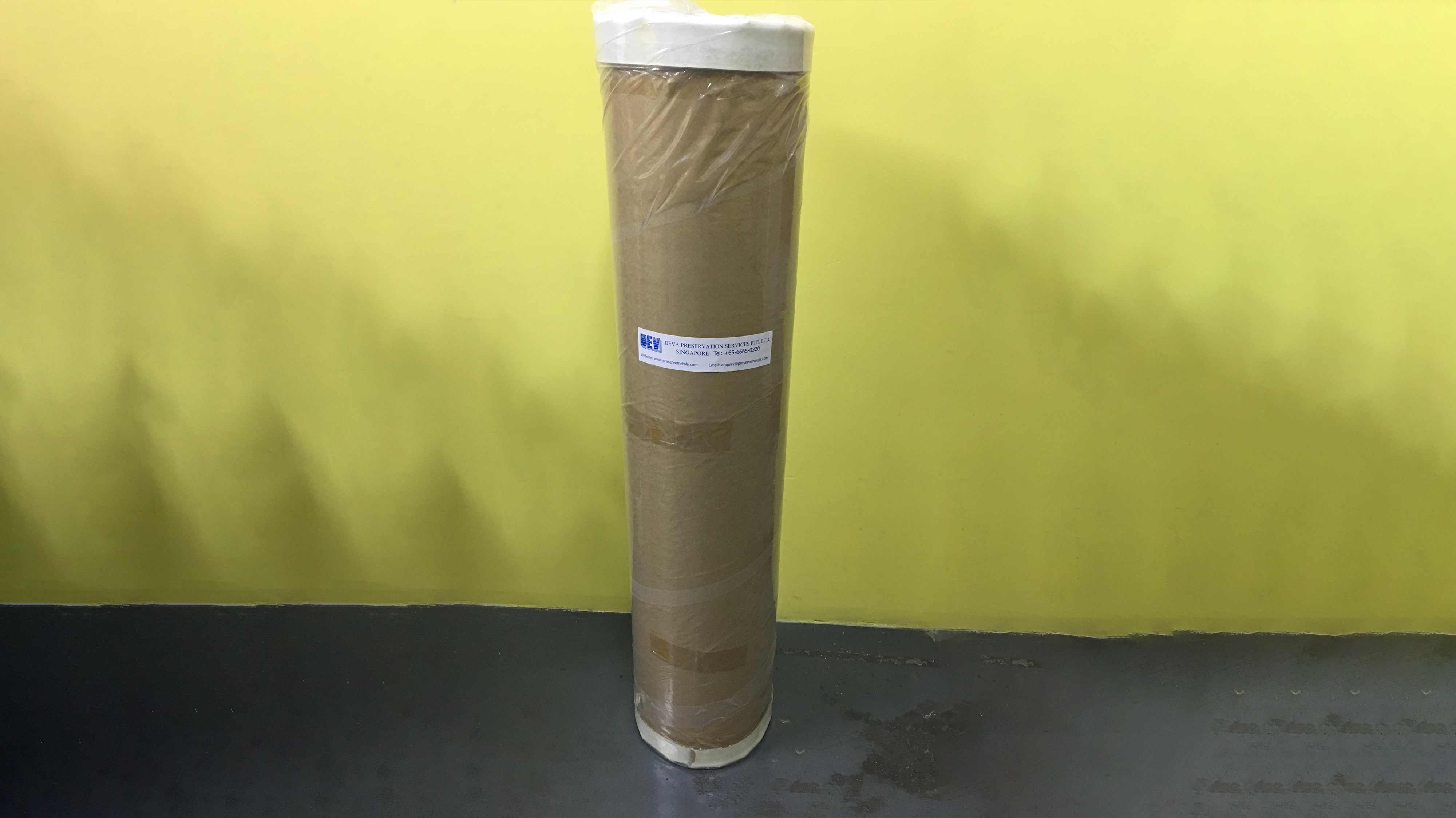

  • Also available in plasticized lamination form.
  • The product is derived from non-aromatic amines which are not included in the list of carcinogenic amines.
  • According to your needs, the product is offered in the form of rolls, sheets, bags as well as in the desired dimensions. It can also be laminated on 20/40 μ polyethylene film or on Raffia fiber, with a final weight in grams of between 76 and 156 g/m².

Approved Globally :

Corrosion VCI

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Store in its original package, in room temperature no higher than 40 deg C & relative humidity not greater than 70%, with natural ventilation.
  • Available in 1.2-meter-wide rolls.

Physical & Chemical Data:

Characteristic Norm Unit Spec-paper Spec-plastic paper
Weight ISO536-1995 g/m2 55.9~75.9 95.9
Thickness ISO534-1988 mm 0.10~0.12 0.13
Rupturing Tension(Transversal) ISO1924-1992 KN/m 6.38 6.38
Rupturing Tension(Longitudinal) ISO1924-1992 KN/m 2.78 2.78
Mullen ISO1759-1983 KPa 221 221
Cobb60 ISO535-1995 g H20/m2 >70 >70
Amount of Active VCI Company g/m2 >6.00 >6.00

Description

Suitable for metal material packaging. Protection against the corrosion of ferrous and non-ferrous metal in storage and shipment processes.

Corrosion VCI

Applications

  • The durability of the metal protection offered, the functioning of the VCI Paper is efficient for a period of 36 months or more.
  • This material serves as “barriers” that impede the penetration of humidity and contact with impurities, creating a directed volatilization. They can conform to the desired mechanics.

Properties

  • For VCI paper, active VCI compound applied at 4-15% on Kraft Paper and which is laminated with 20 Micron PE film woven paper.
  • plastic paper, active VCI compound applied 20μm PE film.

Features & Benefits

  • Material is completely free of nitrites, nitrates, chromates, sulphates and heavy metals.
  • Practically non-toxic product, totally biodegradable and recyclable.
  • Also available in plasticized lamination form.
  • The product is derived from non-aromatic amines which are not included in the list of carcinogenic amines.
  • According to your needs, the product is offered in the form of rolls, sheets, bags as well as in desired dimensions. It can also be laminated on 20/40 μ polyethylene film or on Raffia fiber, with a final weight in grams of between 76 and 156 g/m².

Storage & Packaging

  • Store in its original package, in room temperature no higher than 40 deg C & relative humidity not greater than 70%, with natural ventilation.
  • Available in 1.2-meter-wide rolls.

Physical & Chemical Data

CHARACTERI- STIC NORM UNIT SPEC
WEIGHT ISO536-1995 g/m2 155.2
THICKNESS ISO534-1988 mm 0.22
RUPTURING TENSION (TRANSVERSAL) ISO1924- 1992 KN/m 13.34
RUPTURING TENSION ( LONGITUDINAL) ISO1924- 1992 KN/m 15.88
MULLEN ISO2759- 1983 KPa 1298
COBB60 ISO535-1995 g H20/M2 >80
AMOUNT OF ACTIVE VCI Company g/m2 >6.00

Globally approved

Corrosion VCI

Description

Suitable for metal material packaging. Protection against the corrosion of ferrous and non-ferrous metal in storage and shipment processes.

Applications

  • The durability of the metal protection offered, the functioning of the VCI Paper is efficient for a period of 36 months or more.
  • This material serves as “barriers” that impede the penetration of humidity and contact with impurities, creating a directed volatilization. They can conform the desired mechanical resistance unto the VCI paper.
VCI Corrosion

Properties

  • For VCI paper, active VCI compound applied at 8-9% on Kraft Paper.
  • For plastic paper, active VCI compound applied at 8-9% on Kraft Paper and 20μm PE film.

Features & Benefits

  • Toxic levels are tested and passed: LD50 orally > 2000 mg/kg .
  • Material is completely free of nitrites, nitrates, chromates, sulphates and heavy metals.
  • Practically non-toxic product, totally biodegradable and recyclable.
  • Also available in plasticized lamination form.
  • The product is derived from non-aromatic amines which are not included in the list of carcinogenic amines.
  • According to your needs, the product is offered in the form of rolls, sheets, bags as well as in desired dimensions. It can also be laminated on 20/40 μ polyethylene film or on Raffia fiber, with a final weight in grams of between 76 and 156 g/m².

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Store in its original package, in room temperature no higher than 40 deg C & relative humidity not greater than 70%, with natural ventilation.
  • Available in 1.2-meter-wide rolls.

Physical & Chemical Data

CHARACTERI- STIC NORM UNIT SPEC–PLASTIC PAPER
WEIGHT ISO536-1995 g/m2 95.9
THICKNESS ISO534-1988 mm 0.13
RUPTURING TENSION (TRANSVERSAL) ISO1924- 1992 KN/m 6.38
RUPTURING TENSION ( LONGITUDINAL) ISO1924- 1992 KN/m 2.78
MULLEN ISO2759- 1983 KPa 221
COBB60 ISO535-1995 g H20/M2 >70
AMOUNT OF ACTIVE VCI Company g/m2 > 6.00

Globally approved

VCI Corrosion

Description

Suitable for stretch metal/material packaging. Protection against the corrosion of ferrous and non-ferrous metal material in the storage and shipment processes.

Properties

  • VCI CONTENT: Active VCI compound applied at 2 – 3% on PEBD resin. It can be co-extruded in different thicknesses and PE resin mixtures.
  • Non-toxic VCI “Volatile Corrosion Inhibitor” TOXICITY level as low as: LD50 orally > 2000 mg/Kg. Material completely free of nitrites, nitrates, chromates, sulfates and heavy metals.
VCI Corrosion

Features & Benefits

  • Practically recyclable product, totally biodegradable and recyclable Anti-UV packaging.
  • This product is derived from non-aromatic amines which are not included in the list of carcinogen amines.
  • Anti-flame retardant,Classified according to UL94.
  • Product composed of 100% resin mixtures of Low Density Linear Polyethylene resins, without the addition of other chemical.
  • Products which promote their adhesiveness. Thicknesses, with stretching, adhesive and transparency properties are at the best. Can be ordered as required.

Directions for use

  • Film should be wrapped completely around the material/item to be protected against corrosion. If needed overlap to avoid gaps.
  • Make sure all previously applied preservative coating is dried, cover 100% of the bare metal.
  • Stretch at the required level to the required shape tightly.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Available in 25, 60 and 80 microns thick, 0.5 /1.2 meters width in 3 kg rolls.
  • Plastic film available in clear film, or which can be co-extruded into different colour as required.

VCI Corrosion

Description

Suitable for stretch metal/material packaging. Protection against the corrosion of ferrous and non-ferrous metal material in the storage and shipment processes.

Properties

  • VCI CONTENT: Active VCI compound applied at 2 – 3% on PEBD resin.
  • It can be co-extruded in different thicknesses and PE resin mixtures. Non-toxic VCI “Volatile Corrosion Inhibitor”.
  • TOXICITY level as low as: LD50 orally > 2000 mg/kg. Material completely free of nitrites, nitrates, chromates, sulfates and heavy metals.

Features & Benefits

  • Practically recyclable product, totally.
  • Biodegradable and recyclable Anti-UV packaging. This product is derived from non-aromatic amines which are not included in the list of carcinogen amines.
  • Anti-flame retardant, classified according to UL94.
  • Products which promote their adhesiveness. Thicknesses, with stretching, adhesive and.
  • transparency properties are at the best. Can be ordered as required.

Directions for use

  • Dev VCI W-Shield 25 can be applied spray, brush, rolling or can be directly added in water-based fluids at the time of stagnation like hydro testing, pressure testing, leak testing,etc.
  • Additive: 2% of the content volume.
  • Spraying: 20-30% solution at the rate of 1L/m3 of volume.
  • Brushing: 30% solution at the rate of 1L/8m2 of surface area; directly apply on the walls of tanks, where the brush can be reached.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Available in different models like Zip Lock & Velcro.
  • Plastic film available in clear film, or which can be co-extruded into different colour as required.

Various bag Sizes

All customized sizes are available subject to minimum order quantity.
S.No Bag Size (L*W) mm
1 500X600
2 1200X1500
3 1800X2000
4 2400X2500
5 2400X3000
6 2000X4000

Description

Suitable for stretch metal/material packaging. Protection against the corrosion of ferrous and non-ferrous metal material in the storage and shipment processes.

Properties

  • VCI CONTENT: Active VCI compound applied at 2 – 3% on PEBD resin.
  • It can be co-extruded in different thicknesses and PE resin mixtures. Non-toxic VCI “Volatile Corrosion Inhibitor”.
  • TOXICITY level as low as: LD50 orally > 2000 mg/Kg. Material completely free of nitrites, nitrates, chromates, sulfates and heavy metals.

Features & Benefits

  • Practically recyclable product, totally.
  • Biodegradable and recyclable Anti-UV packaging. This product is derived from non-aromatic amines which are not included in the list of carcinogen amines.
  • Anti-flame retardant, classified according to UL94.
  • Products which promote their adhesiveness. Thicknesses, with stretching, adhesive and
  • transparency properties are at the best. Can be ordered as required.

Directions for use

  • Dev VCI W-Shield 25 can be applied spray, brush, rolling or can be directly added in water-based fluids at the time of stagnation like hydro testing, pressure testing, leak testing, etc.
  • Additive: 2% of the content volume.
  • Spraying: 20-30% solution at the rate of 1L/m3 of volume.
  • Brushing: 30% solution at the rate of 1L/8m2 of surface area directly apply on the walls of tanks, where the brush can be reached.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Available in different models like Zip Lock & Velcro.
  • Plastic film available in clear film, or which can be co-extruded into different colour as required.

Various bag Sizes

All customized sizes are available subject to minimum order quantity.
S.No Bag Size (L*W) mm
1 500X600
2 1200X1500
3 1800X2000
4 2400X2500
5 2400X3000
6 2000X4000

Description

Suitable for stretch metal/material packaging. Protection against the corrosion of ferrous and nonferrous metal material in the storage and shipment processes.

Properties

  • VCI CONTENT: Active VCI compound applied at 2 – 3% on PEBD resin.
  • It can be co-extruded in different thicknesses and PE resin mixtures Non-toxic VCI “Volatile Corrosion Inhibitor”.
  • TOXICITY level as low as: LD50 orally > 2000 mg/kg. Material completely free of nitrites, nitrates, chromates, sulfates and heavy metals.

Features & Benefits

  • Practically recyclable product, totally.
  • biodegradable and recyclable Anti-UV packaging. This product is derived from non-aromatic amines which are not included in the list of carcinogen amines, .
  • Anti-flame retardant, classified according to UL94.
  • Products which promote their adhesiveness. Thicknesses, with stretching, adhesive and.
  • transparency properties are at the best. Can be ordered as required.

Directions for use

  • Dev VCI W-Shield 25 can be applied spray, brush, rolling or can be directly added in water based fluids at the time of stagnation like hydro testing, pressure testing, leak testing etc.
  • Additive: 2% of the content volume.
  • Spraying: 20-30% solution at the rate of 1L/m3 of volume.
  • Brushing: 30% solution at the rate of 1L/8m2 of surface area directly apply on the walls of tanks, where the brush can be reached.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Available in different models like Zip Lock& Velcro.
  • Plastic film available in clear film, or which can be co-extruded into different colour as required.

Various bag Sizes

All customized sizes are available subject to minimum order quantity
S.No Bag Size (L*W) mm
1 500X600
2 1200X1500
3 1800X2000
4 2400X2500
5 2400X3000
6 2000X4000
