Indoor/Outdoor

Description

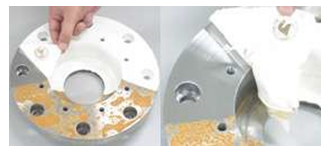

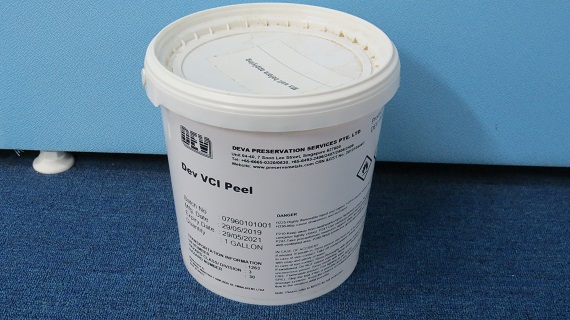

Rust preventive peelable coating fluid, made of synthetic polymers, chemically treated with ADVANCED corrosion inhibitors and UV blockers.

Application

This product is recommended for:

  • This product was developed due to difficulties encountered in protecting large parts, with small parts exposed to corrosive action, during interventions or maintenance, such as turbine rotors for thermoelectric plants, high efficiency motor carcasses, flanges and parts with complex surfaces.
  • The surface must be free of greasy residue and products that are not compatible with V- Active.

Properties

  • Excellent deposition on metallic surfaces with different finishing.
  • It is an anti-UV barrier, resistant to lixiviation with the anticorrosive VCI properties.

Features & Benefits

  • Easy removal, no waste, no need for solvents.
  • Excellent deposition on metal surfaces of different finishes.
  • UV barrier and resistance to oxidation for 6 months, also a physical barrier.

Physical & Chemical Data

Type of film Monomolecular
Ideal Working Temperature Ambient
Color Transparent or White
Flash Point Non-flammable
Appearance Liquid
Density at 25°C 1.17~1.24 g/cm³

Direction of use

  • Clean the surface to be preserved with cloth, or degreaser.
  • Remove any waste.
  • Apply the Dev VCI Peel using a brush.
  • Allow it to dry for ten minutes.
  • Ensure 100% cover of Dev VCI Peel without any discontinuity.
  • Protect the area from rain and water contamination.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • MV Skin is available in 1 Gal / 3.6L containers.

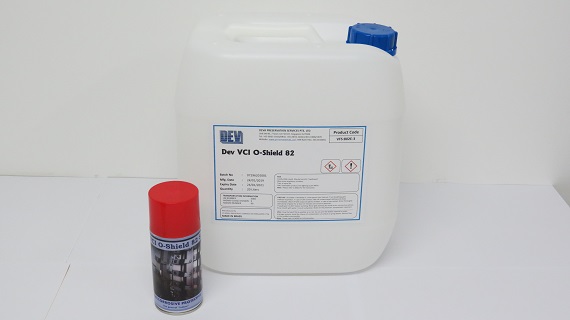

Description

Oil-based, thixotropic, anti-corrosive product that forms a stable film on treated surfaces.

Directions for use

  • Spray or brush apply Dev VCI O-Shield 82 to cover the bare metal surfaces.
  • Allow the Dev VCI O-Shield 82 to dry.
  • When it is drying, keep away from contaminating with water & dust on the applied rust preventers .
Protective Thixotropic Oil for ferrous & non-ferrous metals.

Applications

  • Protecting ferrous and non-ferrous parts stored indoors for 3 years.
  • Suitable for products to be exported.

Properties

  • Forms a thixotropic protective film.
  • Excellent water-repellent capacity.
  • High protection power for equipment and parts.
  • Forms an almost unnoticeable thin protective film able to affix stabilizing auto-repairable anti-corrosive surface.

Features & Benefits

  • Dev VCI O-Shield 82 is an oil based anti-corrosive product that forms a stable film on treated surfaces.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Do not reuse empty containers.
  • Available in Aerosol cans,20L jerry can or 200L barrels.
  • Aerosol Spray cans are available under the name Dev VCI O-Shield 82S.

Physical & Chemical Data

Type of film Thixotropic
Humid Chamber 1054 hours
Salt Spray Passed
Viscosity 18.0 cSt
Ideal Working Temperature Ambient
Color Brown
Flash Point COC 100 deg C
Appearance Liquid
Density at 20°C 0.880 g/cm³

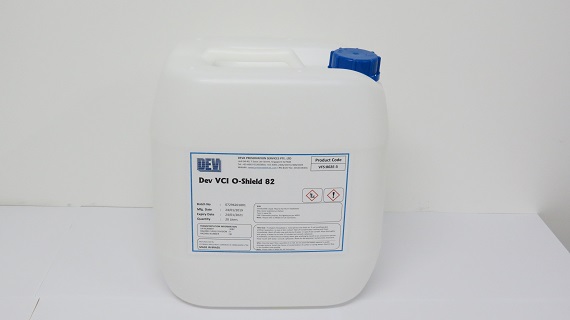

Description

Sprayable oil-based, thixotropic, anti-corrosive product that forms a stable film on treated surfaces.

Application

This product is recommended for:

  • Protecting ferrous and non-ferrous parts stored indoors for 3 years.
  • Suitable for products to be exported.

Properties

  • Forms a thixotropic protective film.
  • Excellent water-repellent capacity.
  • High protection power for equipment and parts.
  • Forms an almost unnoticeable thin protective film able to affix stabilizing auto-repairable anti-corrosive surface.

Features & Benefits

  • Dev VCI O-Shield 82 is an oil based anti-corrosive product that forms a stable film on treated surfaces.

Physical & Chemical Data

Type of film Thixotropic
Humid Chamber 1054 hours
Salt Spray Passed
Viscosity 18.0 cSt
Working Temperature Ambient
Colour Brown
Flash Point COC 100 deg C
Appearance Liquid
Density at 20°C 0.880 g/cm³

Direction for use

  • Spray or brush apply Dev VCI O-Shield 82 to cover the bare metal surfaces.
  • Allow the Dev VCI O-Shield 82 to dry.
  • When it is drying, keep away from contaminating with water & dust on the applied rust preventers.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Do not reuse empty containers.
  • Available in Aerosol cans, 20L jerry can or 200L barrels. Dev VCI O-Shield 82S is named for Aerosol Spray cans .
  • Aerosol Spray cans are available under the name Dev VCI O-Shield 82S.

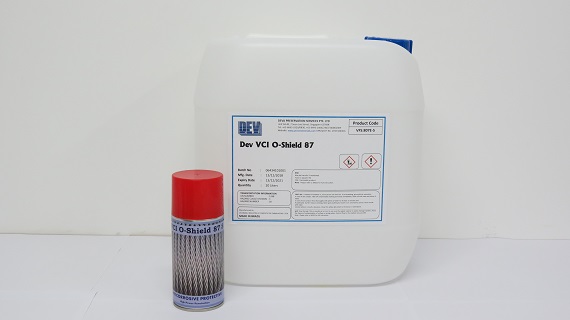

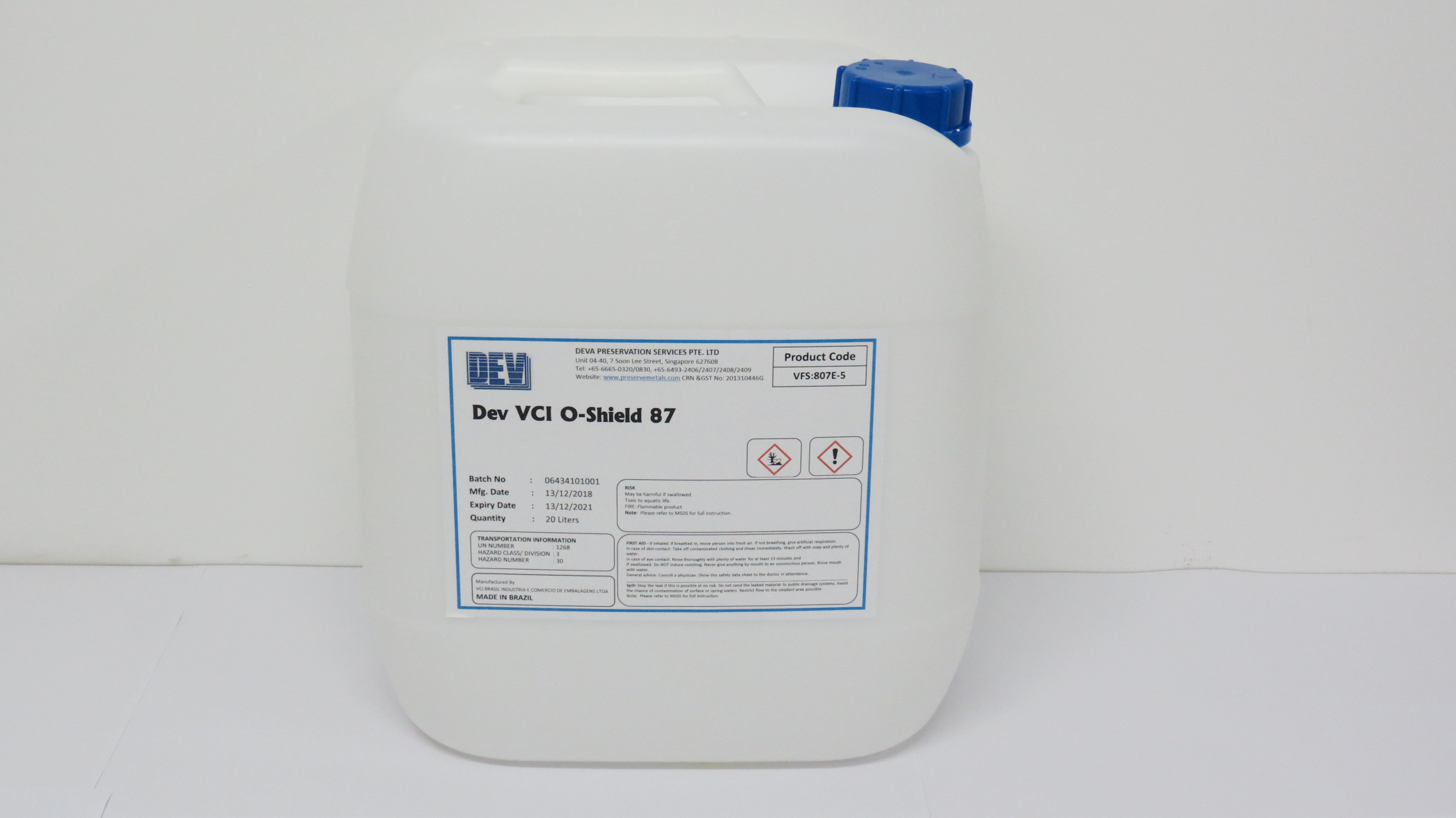

Description

Oil-based, thixotropic, anti-corrosive product that forms a stable film on treated surfaces. Good lubricating fluid.

Application

This product is recommended for:

  • Steel cables: Protection of ferrous & non-ferrous parts in onshore environment or near the sea.
  • Also suitable for external surfaces where we need full transparent coat with non-drying layer allowed.

Properties

  • Forms a thixotropic protective film.
  • Excellent water-repellent capacity.
  • High protection power for equipment and parts.
  • Forms an almost unnoticeable thin protective film able to affix stabilizing auto-repairable anti-corrosive surface.

Features & Benefits

  • Dev VCI O-Shield 87 is an oil based anti-corrosive product that forms a stable film on treated surfaces.

Physical & Chemical Data

Type of film Thixotropic
Humid Chamber >2000 hours
Colour Brown
Flamable Point COC 200 deg C
Density at 20°C 0.870 g/cm³

Directions for use

  • Dev VCI Water Guard+ is used as an additive, 100% concentrated.
  • It is added as 2% of the volume of content.

Storage & Packaging

  • Do not reuse empty containers.
  • Available in Aerosol cans, 20L carboy cans or 200Lbarrels. Dev VCI O-Shield 87S is description for spray can.

Description

Spray able oil-based, thixotropic, anti-corrosive product that forms a stable film on treated surfaces. Good lubricating fluid.

Application

This product is recommended for:

  • Steel cables: Protection of ferrous & non-ferrous parts in onshore environment or near the sea.
  • Also suitable for external surfaces where we need full transparent coat with non-drying layer allowed.

Properties

  • Forms a thixotropic protective film.
  • Excellent water-repellent capacity.
  • High protection power for equipment and parts.
  • Forms an almost unnoticeable thin protective film able to affix stabilizing auto-repairable anti-corrosive surface.

Features & Benefits

  • Dev VCI O-Shield 87S is an oil based anti-corrosive product that forms a stable film on treated surfaces.

Physical & Chemical Data

Type of film Thixotropic
Humid Chamber >2000 hours
Colour Brown
Flamable Point COC 200 deg C
Density at 20°C 0.870 g/cm³

Directions for use

  • Dev VCI Water Guard+ is used as an additive, 100% concentrated.
  • It is added as 2% of the volume of content.

Storage & Packaging

  • Do not reuse empty containers.
  • Available in Aerosol cans, 20L carboy cans or 200Lbarrels. Dev VCI O-Shield 87S is description for spray can.

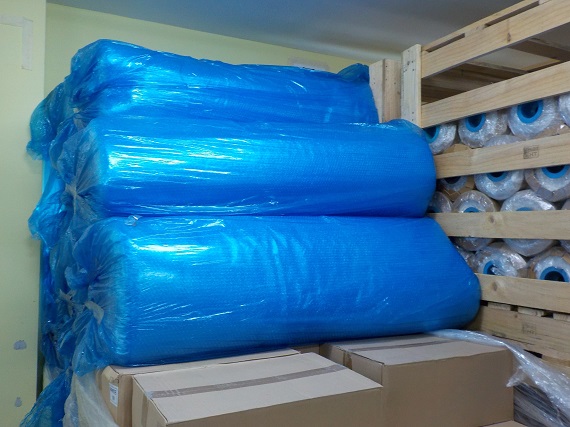

Description

Suitable for wrap Gauges/instruments packaging. Protection against damage , corrosion of ferrous and non-ferrous metal parts/gauges in the storage ,shipment processes.

Properties

  • VCI CONTENT: Active VCI compound applied on PEBD resin. It can be co-extruded in different thicknesses and PE resin mixtures.
  • Non-toxic VCI “Volatile Corrosion Inhibitor” TOXICITY level as low as: LD50 orally > 2000 mg/kg. Material completely free of nitrites, nitrates, chromates, sulfates and heavy metals.

Features & Benefits

  • Practically recyclable product, totally biodegradable and recyclable.
  • This product is derived from non-aromatic amines which are not included in the list of carcinogen amines.
  • Product composed of 100% resin mixtures of Low Density Linear Polyethylene resins, without the addition of other chemical.

Directions for use

  • Film should be wrapped completely around the instruments/item to be protected against corrosion with air pocketed mechanical cushions.
  • Make sure all previously applied preservative coating is dried, cover 100% of the bare metal.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Available in 70 g/m2, 1.3 meters width in 1kg rolls.
  • Bubble film available in white, blue colour or which can be co-extruded into different colour as required.

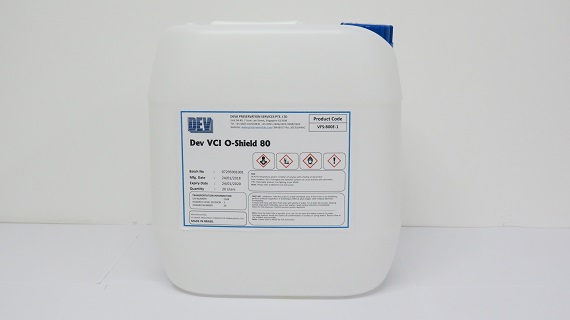

Description

Wax based anti-corrosive product that forms a stable film on treated surfaces.

Application

This product is recommended for:

  • Protecting ferrous and non-ferrous parts stored in and outdoors, and parts with complex geometric shapes.

Properties

  • Forms a thixotropic protective film.
  • When applied, Dev VCI O-Shield 80 dries like a paint, solvent evaporates and becomes wax like coating.
  • High protection power for equipment and parts.
  • Forms an almost unnoticeable thin protective film able to affix stabilizing auto-repairable anti-corrosive surface.

Features & Benefits

  • Physical and chemical barrier with film waxy film, high protection of equipment and machined parts.

Physical & Chemical Data

Type of film Semi-siccative
Humid Chamber > 600 hours
Salt Spray > Passed
Ideal Working Temp > Ambient
Colour Brown
Flamable Point COC 238 ºC
Density at 20°C 0.810 g/cm³

Directions for use

  • Brush, roller, spray and immersion.
  • Rate of application of Dev VCI O-Shield 80 is 1 Lit. per 8M2.
  • Apply Dev VCI O-Shield 80 to cover the entire surfaces of bare metal exposed and completely to be protected. Allow the Dev VCI O-Shield 80 to dry and form a protective layer
  • In case of any rain, close the applied area and protect from water wash of the applied rust preventers till drying.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Do not reuse empty containers.

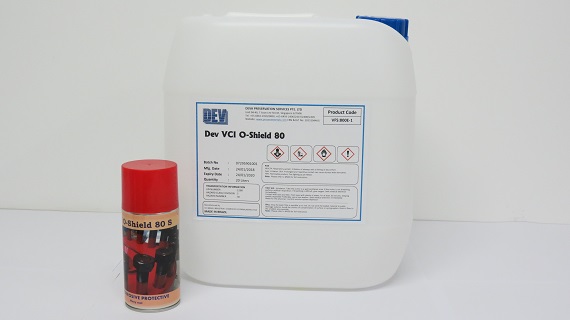

  • Spray cans are named as Dev VCI O-Shield 80S.
  • Available in aerosol cans, 20L carboy cans or 200L barrels.

Description

Wax based anti-corrosive product that forms a stable film on treated surfaces.

Application

This product is recommended for:

  • Protecting ferrous and non-ferrous parts stored in and outdoors, and parts with complex geometric shapes.

Properties

  • Forms a thixotropic protective film.
  • When applied, Dev VCI O-Shield 80 dries like a paint, solvent evaporates and becomes wax like coating.
  • High protection power for equipment and parts.
  • Forms an almost unnoticeable thin protective film able to affix stabilizing auto-repairable anti-corrosive surface.

Features & Benefits

  • Physical and chemical barrier with waxy film, high protection of equipment and machined parts.

Physical & Chemical Data

Type of film Semi-siccative
Humid Chamber >600 hours
Salt Spray >Passed
Ideal Working Temp >Ambient
Colour Brown
Flammable Point COC 238 ºC
Density at 20°C 0.810 g/cm³

Directions for use

  • Brush, roller, spray and immersion.
  • Rate of application of Dev VCI O-Shield 80 is 1 Lit. per 8M2.
  • Apply Dev VCI O-Shield 80 to cover the entire surface of bare metal exposed and to be protected completely. Allow the Dev VCI O-Shield 80 to dry and form a protective layer.
  • In case of any rain, close the applied area and protect from water wash of the applied rust preventers till drying.

Storage & Packaging

  • Store away from heat, flame or sparks.
  • Do not reuse empty containers.
  • Spray cans are named as Dev VCI O-Shield 80S.
  • Available in aerosol cans, 20L carboy cans or 200L barrels.

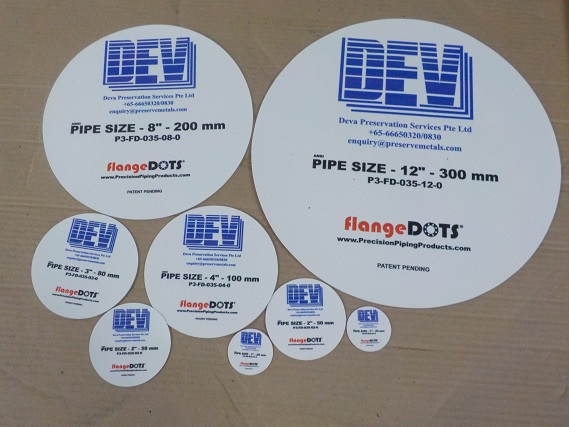

Description

Self-adhesive flange protection meant for closure of flange holes, protect contact surfaces from damage. Can be easily used for closing of internal preservation.

Application

This product is recommended for:

  • Residue free removal, no clean-up required.
  • Safe for Stainless Steel and speciality metals.

Properties

  • Flange Dots contains self-adhesive glue peel able cover for quick application/usage.
  • It Saves time in precision cutting, exact fit to trim, and avoiding of knife usage & preparation time.

Features & Benefits

  • Practically recyclable product, totally biodegradable and recyclable.
  • Simple, faster installation, 87% faster than conventional methods.
  • Precision cut for exact fit, no trimming, no knife usage.
  • Holds up against aggressive shot blast. Consistent professional looking blast & paint edges.
  • Act as pink mask even with most heat cured coatings, works for indoor /outdoor preservation.
  • Protect interiors of the pipe from unwanted debris.

Directions for use

  • Put the flange dot on the pipe end faces.
  • It will adhere to the raised face because of the existing glue and form the seal.

Storage & Packaging

  • Store away from heat, flame or sparks.

Physical & Chemical Data

S.No Pipe Size(Inches) Part Number
1 Pipe size 1/2 (Part #P3-FD-035-00-2)
2 Pipe size 3/4 (Part #P3-FD-035-00-3)
3 Pipe size 1 (Part #P3-FD-035-01-0)
4 Pipe size 1 1/4 (Part #P3-FD-035-01-1)
5 Pipe size 1 1/2 (Part #P3-FD-035-01-2)
6 Pipe size 2 (Part #P3-FD-035-02-0)
7 Pipe size 2 1/2 (Part #P3-FD-035-02-2)
8 Pipe size 3 (Part #P3-FD-035-03-0)
9 Pipe size 3 1/2 (Part #P3-FD-035-03-2)
10 Pipe size 4 (Part #P3-FD-035-04-0)
11 Pipe size 5 (Part #P3-FD-035-05-0)
12 Pipe size 6 (Part #P3-FD-035-06-0)
13 Pipe size 8 (Part #P3-FD-035-08-0)
14 Pipe size 10 (Part #P3-FD-035-10-0)
15 Pipe size 12 (Part #P3-FD-035-12-0)
16 Pipe size 14 (Part #P3-FD-035-14-0)
17 Pipe size 16 (Part #P3-FD-035-16-0)
18 Pipe size 18 (Part #P3-FD-035-18-0)
19 Pipe size 20 (Part #P3-FD-035-20-0)
20 Pipe size 22 (Part #P3-FD-035-22-0)
21 Pipe size 24 (Part #P3-FD-035-24-0)
